Description
gravel bike 11 gang G&F/E11 Gravel Frameset | FramesetsThis pain is yours. Cycling is one of those interesting things that sits between the physical and the mental. It's where solitude can be sanctuary and your legs become the engine. It's where the journey is just as important as the destination and everyone must own their own pain. A limited release designed by God & Famous in New York City in collaboration with Los Angeles based bicycle company Engine 11. *Sold as Frameset only; includes Frame, Fork,
This pain is yours.
Cycling is one of those interesting things that sits between the physical and the mental. It's where solitude can be sanctuary and your legs become the engine. It's where the journey is just as important as the destination and everyone must own their own pain.
A limited release designed by God & Famous in New York City in collaboration with Los Angeles based bicycle company Engine 11.
*Sold as Frameset only; includes Frame, Fork, Headset, Seat Post Clamp and Thru Axles (front & rear).
Features
✔ 650b and 700c compatible
✔ Frame: 6069-T6 Triple Butted Aluminum
✔ Fork: Full Carbon 1 1/8-1.5"
✔ Head Tube: 44mm straight
✔ Bottom Bracket: BSA 30mm
✔ Seatpost: 27.2
✔ Seat Collar: 31.8
✔ Front/Rear Brake: Disc - Flat Mount (160mm Max Rotor)
✔ Hub Spacing: 12x100mm (front) & 12x142mm (rear)
✔ Max Tire Clearance: 700x45c
✔ Weight: Frame 1520g (Size 50cm) / Fork 510g (Size 50cm)
❢ Headset, Seat Post Clamp and Thru Axles (front & rear) are included
Frame Chart
Frame Specs
|
Size |
S |
M |
L |
XL |
Frame Chart |
| Frame Size | 50cm | 53cm | 56cm | 59cm | |
| Seat Tube (CT) | 500mm | 530mm | 560mm | 590mm | A |
| Head Tube Length | 125mm | 145mm | 165mm | 185mm | B |
|
Top Tube Length (Effective) |
525mm | 545mm | 565mm | 585mm | C |
| Front Center | 579.7mm | 600.5mm | 611.4mm | 631.8mm | D |
| BB Drop | 70mm | 70mm | 70mm | 70mm | E |
| Wheel Base | 1004.8mm | 1025.7mm | 1038mm | 1058.5mm | F |
| Fork Offset | 50 | 50 | 50 | 50 | G |
| Fork Length | 395mm | 395mm | 395mm | 395mm | H |
| Chain Stay | 435mm | 435mm | 435mm | 435mm | I |
| Head Tube Angle | 71º | 71º | 71.5º | 71.5º | J |
| Seat Tube Angle | 73.5º | 73.5º | 73º | 73º | K |
| Reach | 354.4mm | 373.4mm | 383.2mm | 423.6mm | L |
| Stack | 560.3mm | 579.2mm | 595.1mm | 614.0mm | M |

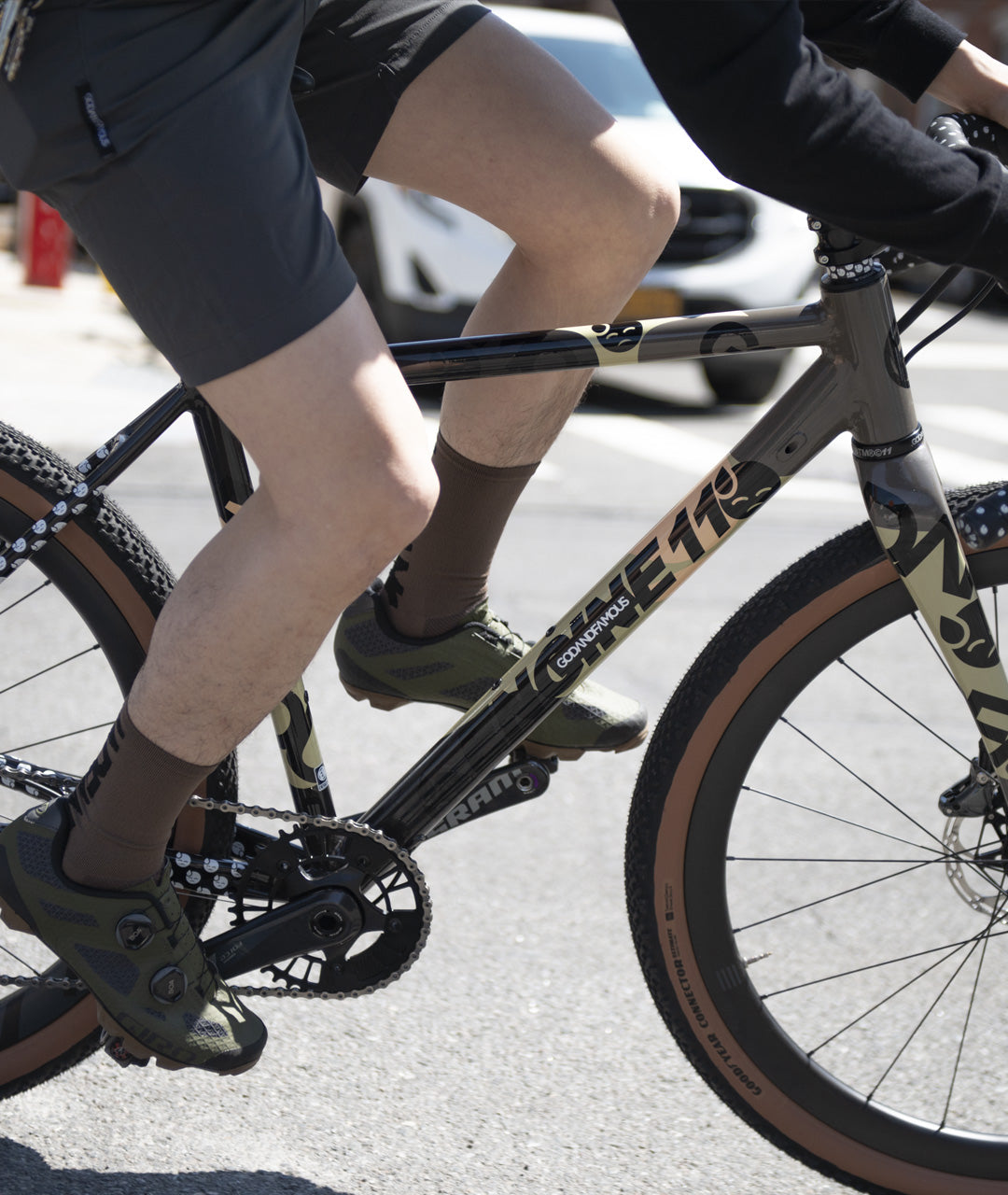

Pictured Build Specs 🔍
✔ Frame Size: S 50cm
✔ Wheels: Honey Wheel Co. 650b Carbon Disc Wheelset (custom)
✔ Tires: Goodyear Connector Ultimate A/T Tubeless - 650x50
✔ Drivetrain: Hawk Racing Bottom Bracket & Derailleur Pulleys
✔ Front Gearing: AARN 110 1x 40T
✔ Rear Gearing: SRAM 11-42
✔ Handlebar: Salsa Woodchipper 44cm
✔ Saddle: Selle Italia SLR Boost Gravel Superflow
Full build by Tijon Randall (@paristicker) of @tuned.by.
